INTENSIVE EXTENSIVE

Core I Studio with Distinction

Harvard GSD • Instructor: Mariana Ibanez • Fall 2015

This project focuses on the relationship of form, matter, and energy in both abstract and actual ways through a study of the intensive and extensive properties of architecture. A single architecture is investigated for its multiple typological manifestations and thermodynamic states.

Geometrical System

Using convection, conduction & self-shading strategies to create cooling system. Developing the relationship between form and engery by method of subtraction.

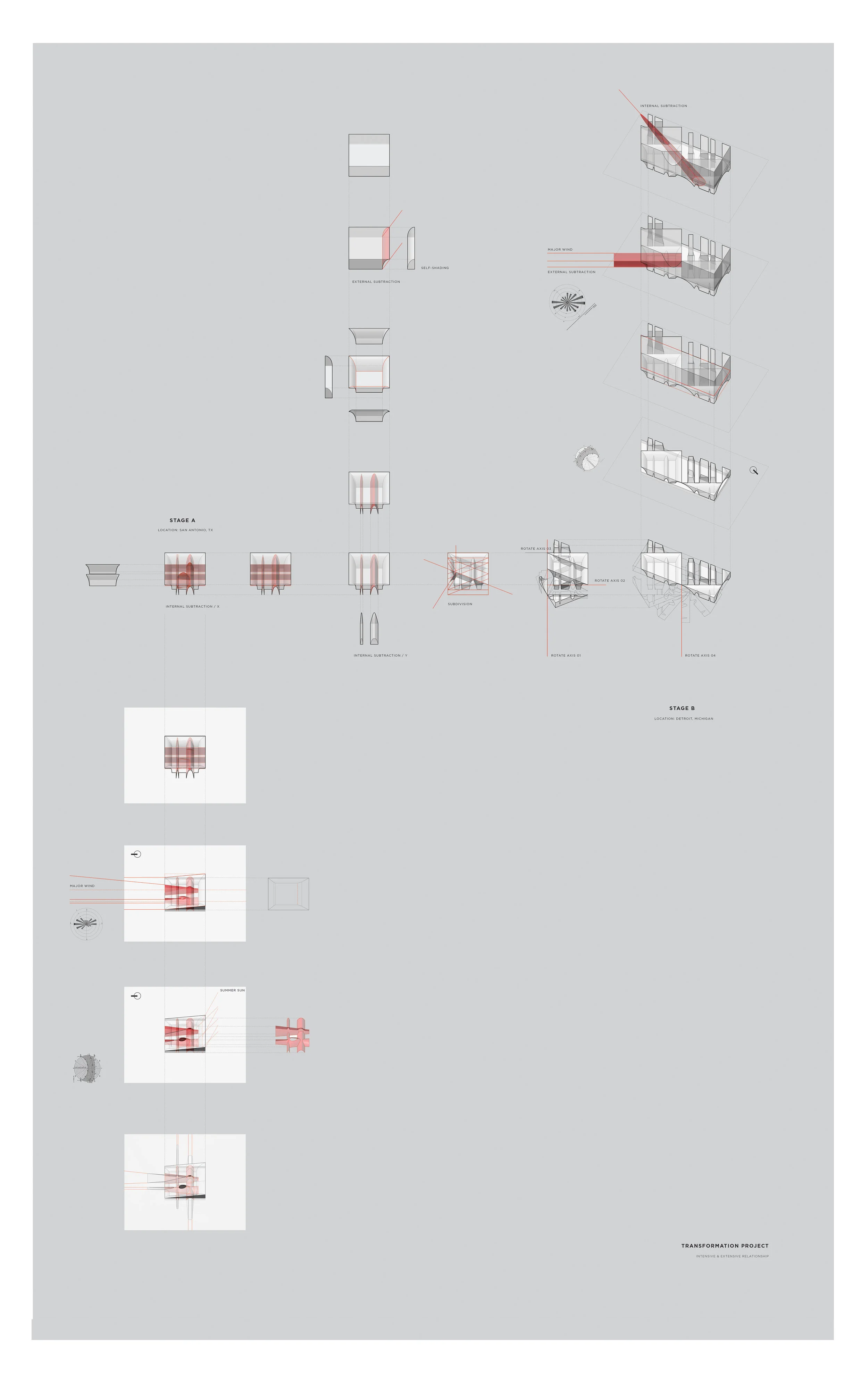

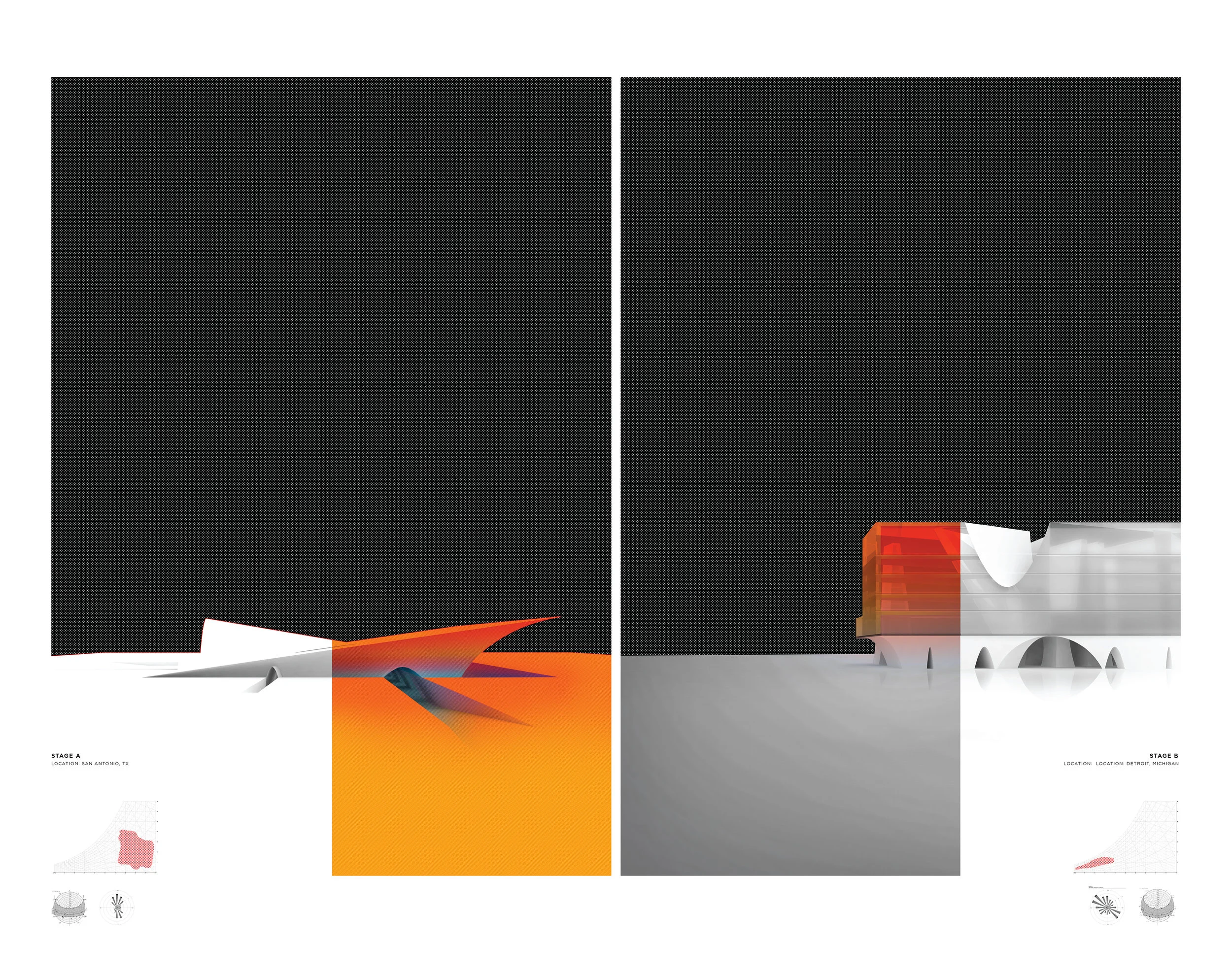

Transformation from Stage A to Stage B

An extensive geometric armature (a three-dimensional hinged dissection) is used to mix intensive properties (e.g. temperature, density, pressure, humidity)

Stage A

Location: San antonio, TX / Climate Condition: Hot & Dry

Form & Air Flow

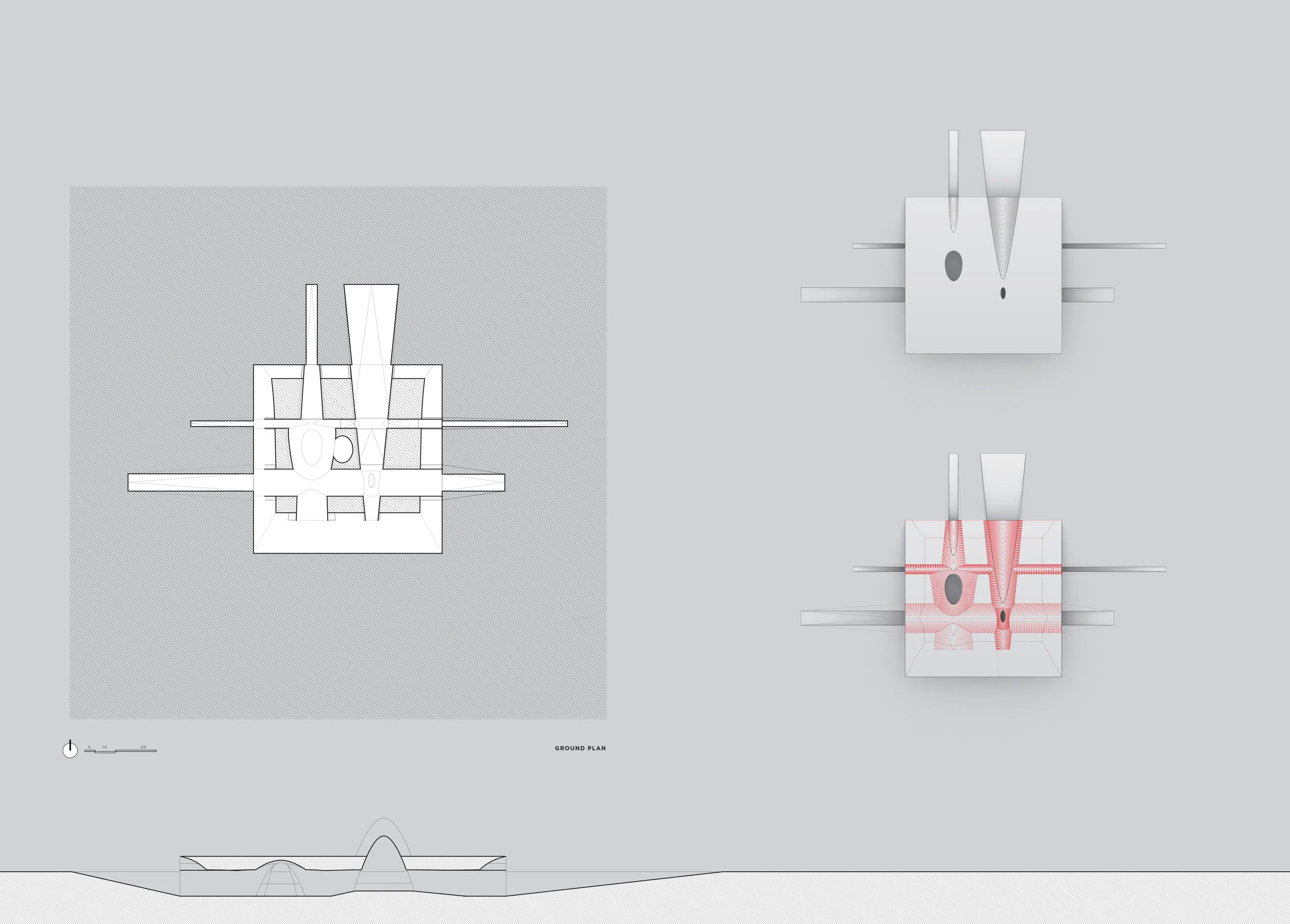

Void subtracted according to major wind current / Applying both cross and stack ventilation

Interior Exterior Condition

Geometrical logic of subtraction to create stack effect, wind catchercross ventilation, and self-shading form

Interior Exterior Condition

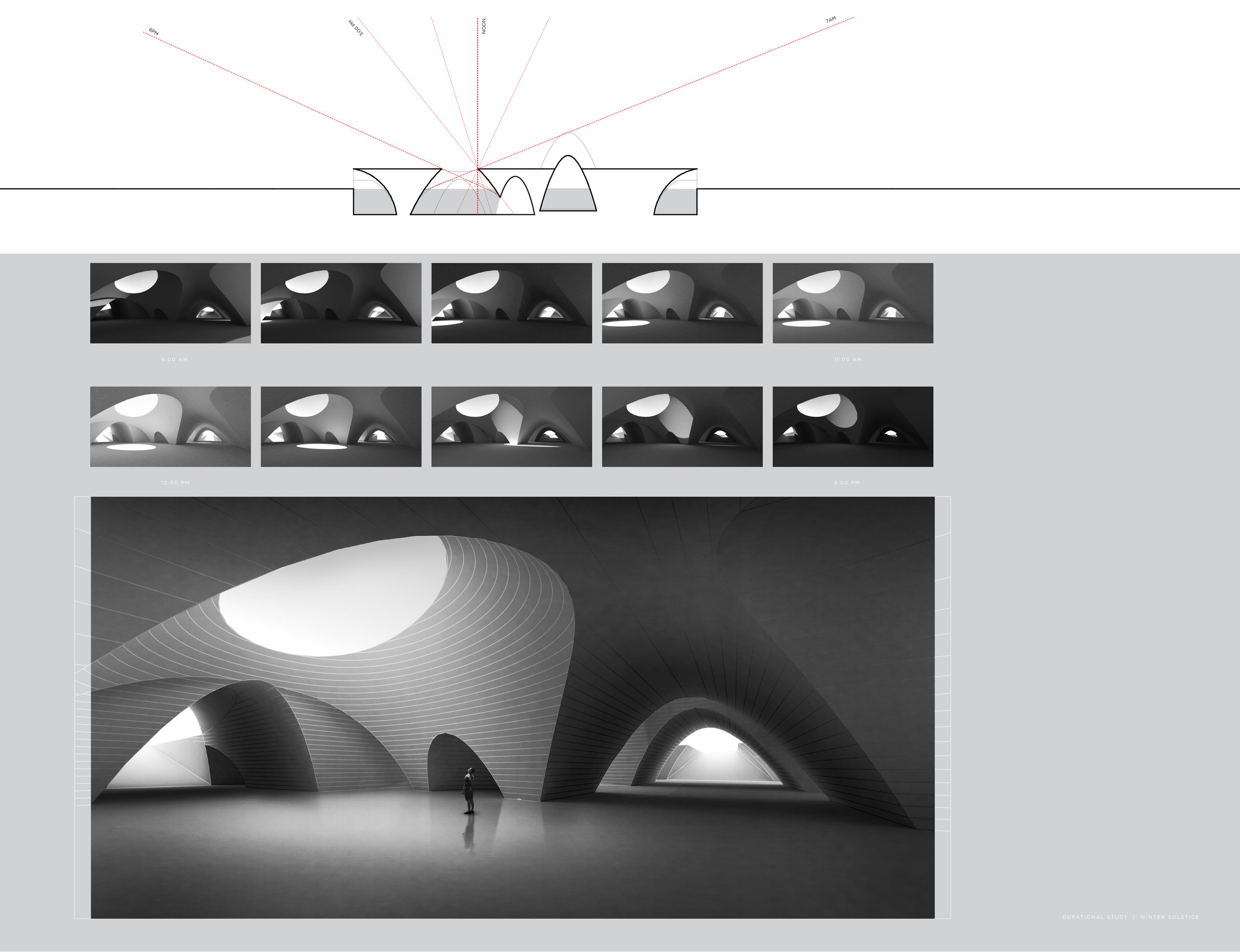

Double Negative / When two voids intersect each other, a third condition is created, informing new air flow and natural light entering to space

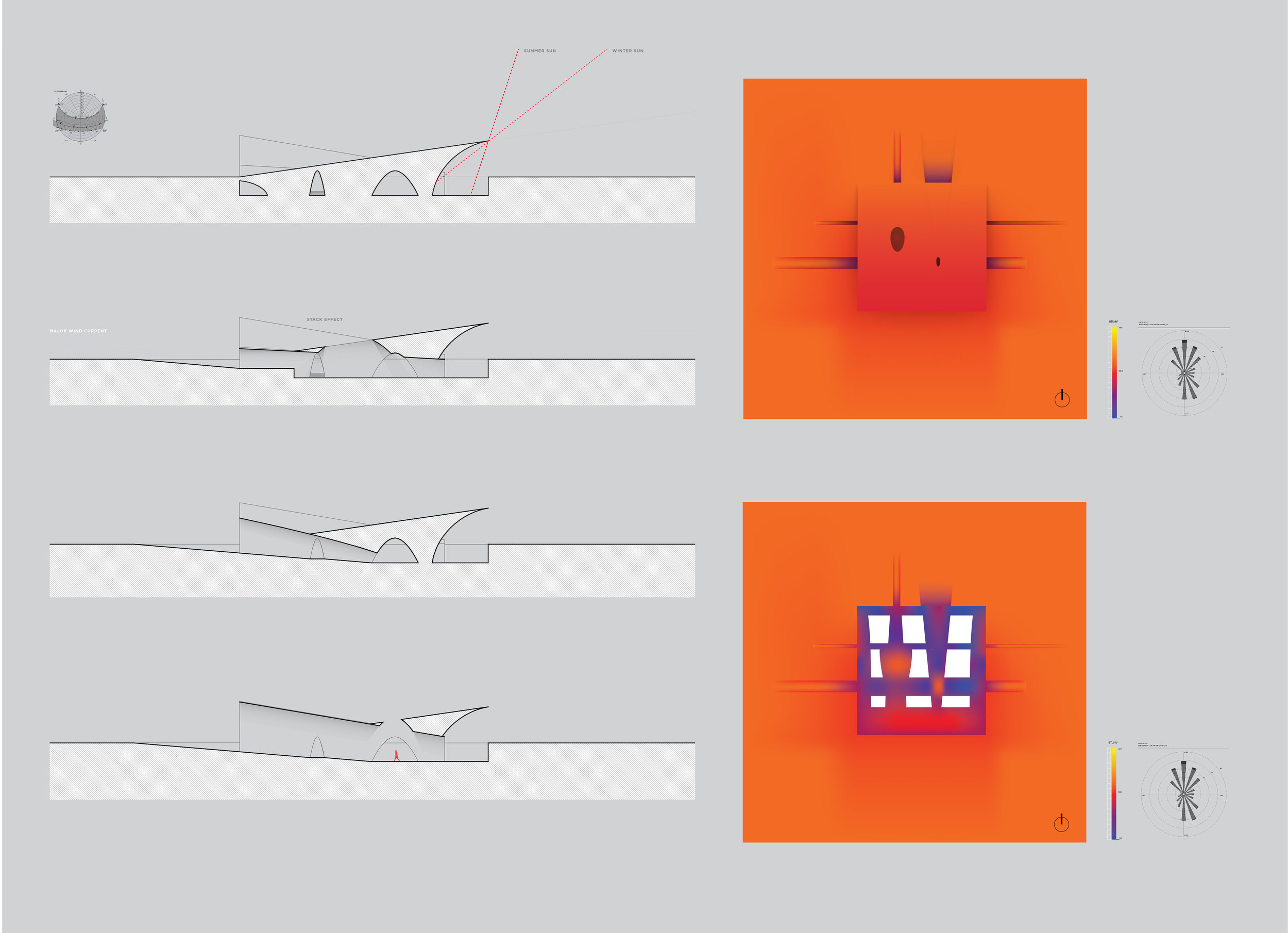

Convection/Conduction

Using convection, conduction & self-shading strategies to create cooling system. Developing the relationship between form and engery by method of subtraction.
